RADIX TYPE X86A & SC807 CONNECTION DETAILS

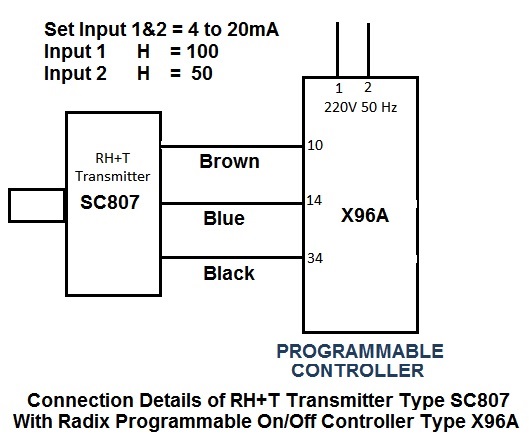

CONNECTION DETAILS OF RADIX 2 WIRE RH+T TRANSMITTER TYPE SC807 WITH DIGITAL METER TYPE RADIX X96A

(1) Sensor Brown Colour Wire Connect to Digital Meter Terminal No.10

(2) Sensor Blue Colour Wire Connect to Digital Meter Terminal No.14

(3) Sensor Black Colour Wire Connect to Digital Meter Terminal No.34

(4) Setting input 1 & 2 = 4 to 20 mAmp

(5) Input 1 High = 100

(6) Input 2 High = 50

http://www.areptone.in/hgw/Radix/RadixRHT.jpg

http://www.areptone.in/hgw/Radix/X96A.pdf

http://www.areptone.in/hgw/Radix/SC807.pdf

http://www.areptone.in/hgw/Radix/X96A-programming.pdf

http://www.areptone.in/hgw/Radix/connection.docx

http://radix.co.in

PROGRAMMING

DESCRIPTION KEY TO BE PRESSED DISPLAY ACTION ·

(1) To enter program mode, press & hold Up & Down keys together, in run mode.

(2) Press STAR & Up keys to increment the value of the selected parameter or increment the level, & press STAR + Down keys to decrement the value of the selected parameter, or decrement the level. ·

(3) Use UP key to go to next parameter. ·

(4) Use Down key to go to previous parameter. ·

(5)To exit from the program mode & enter run mode, press & keys UP & Down together.
